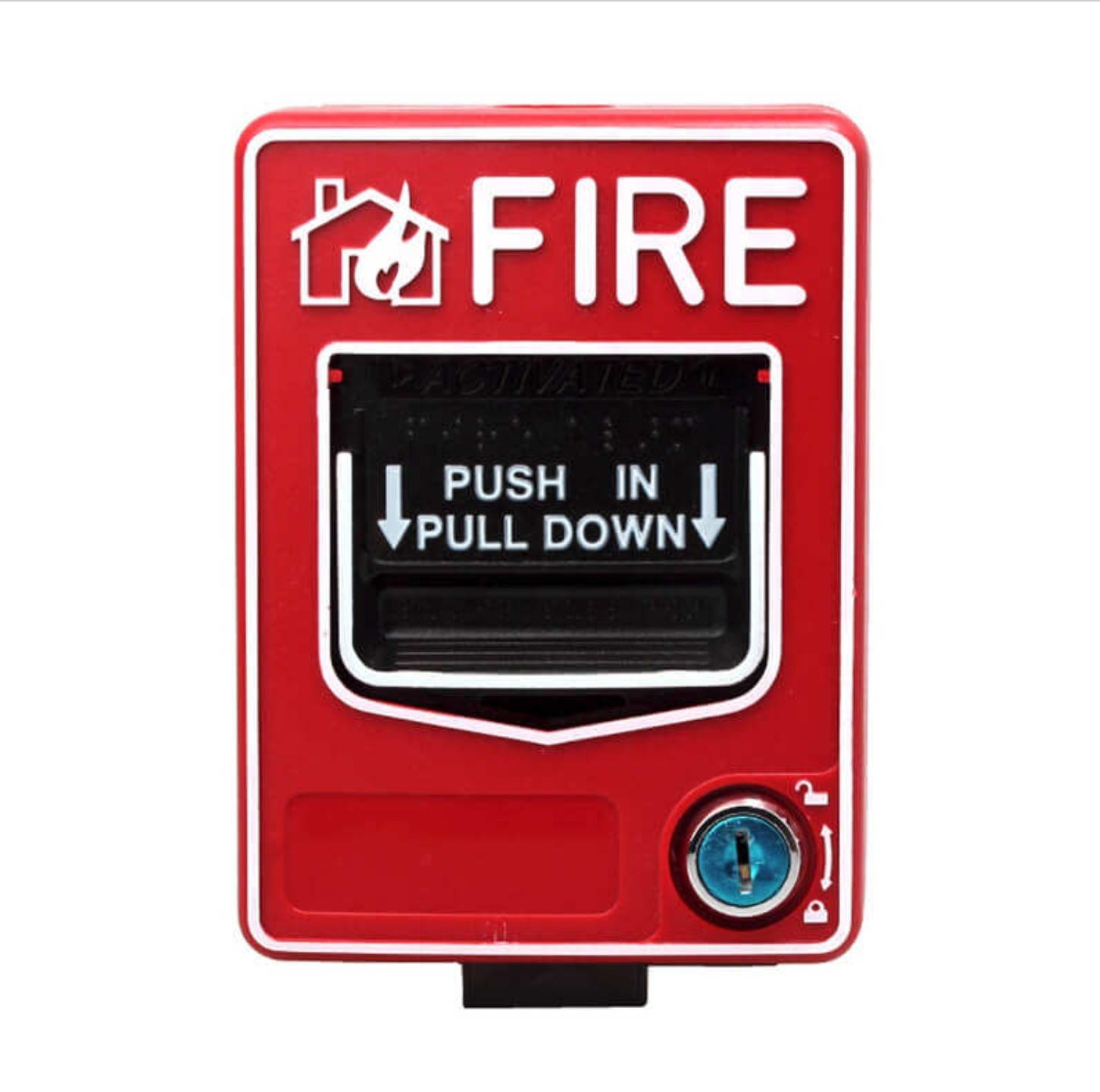

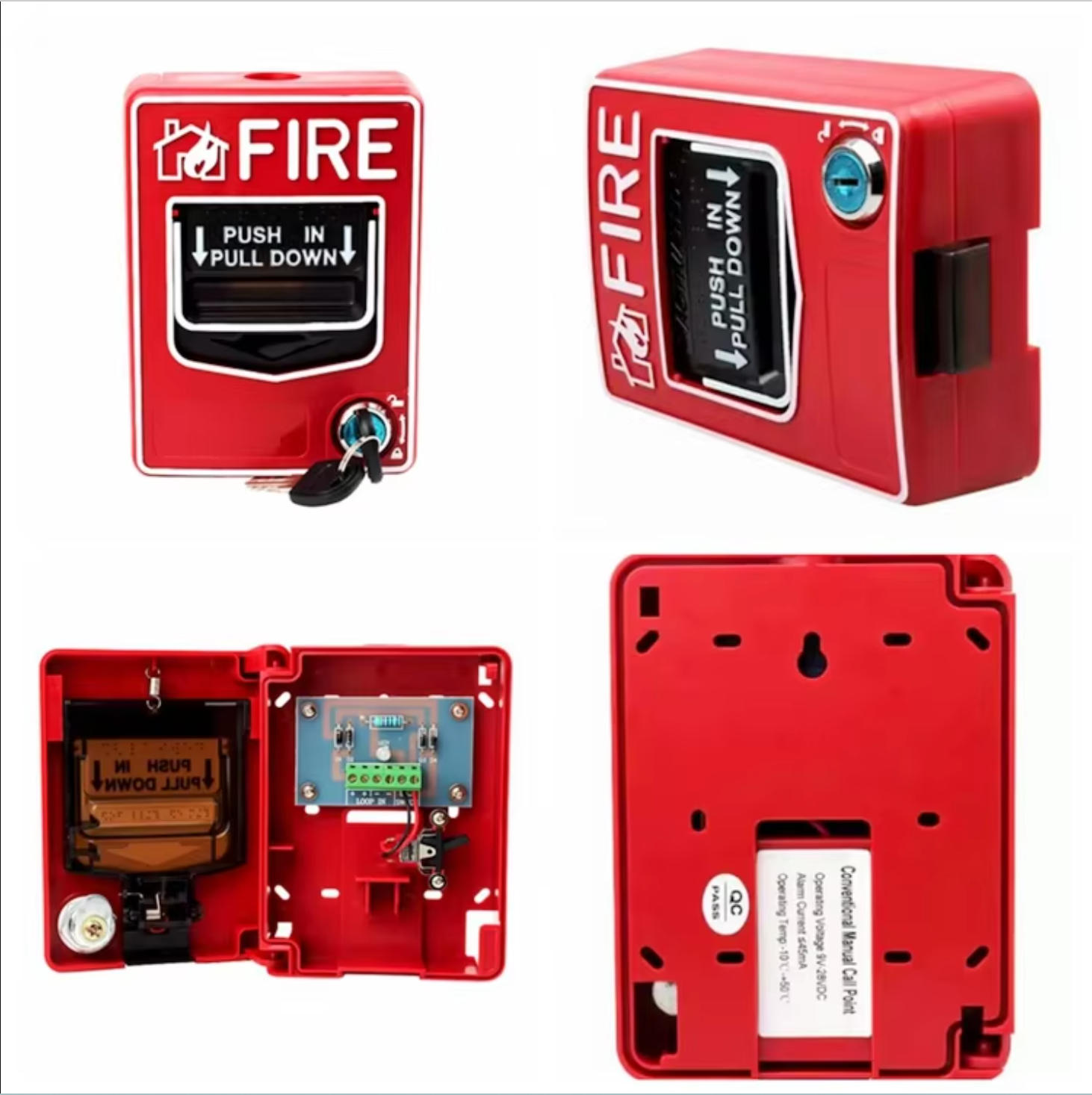

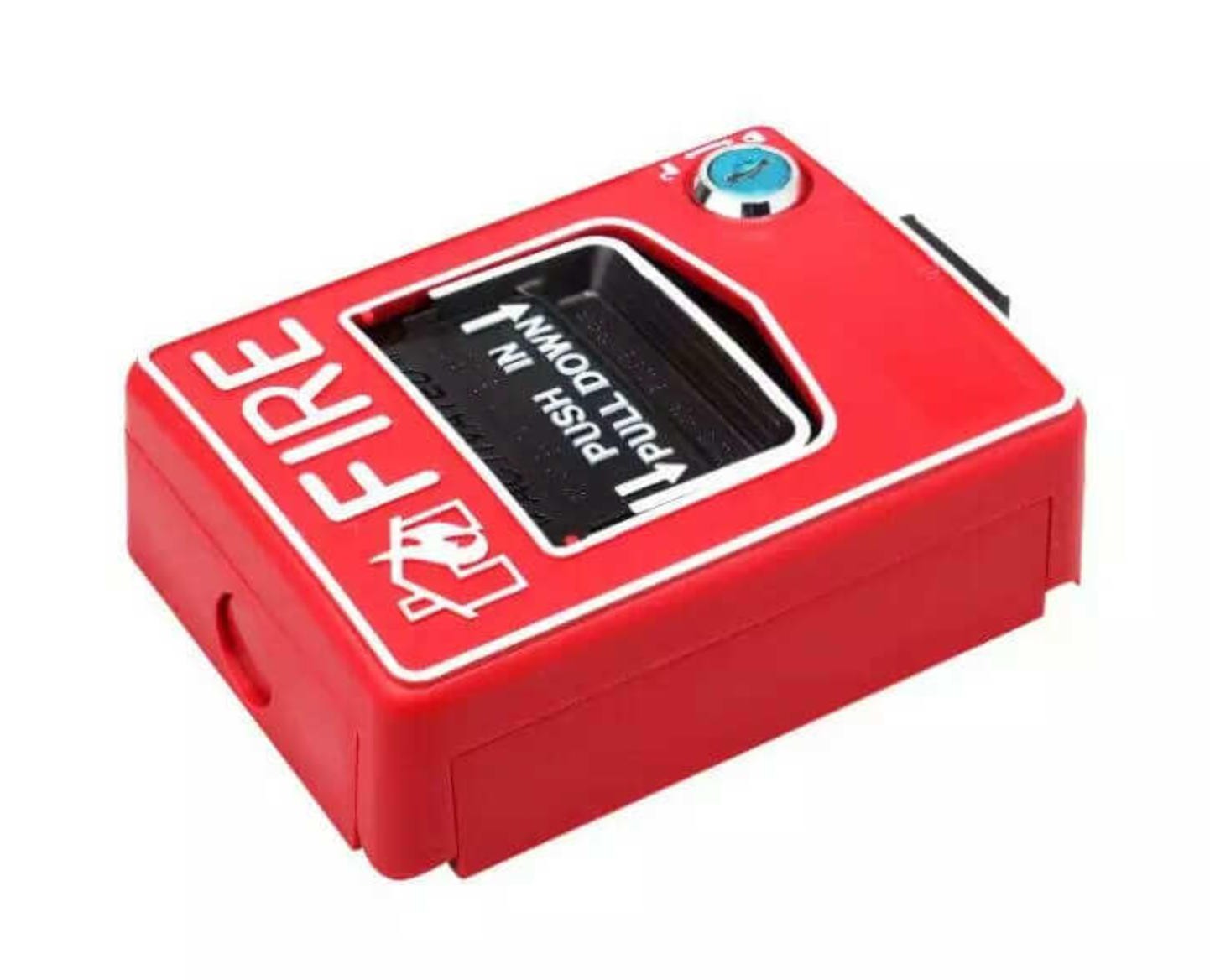

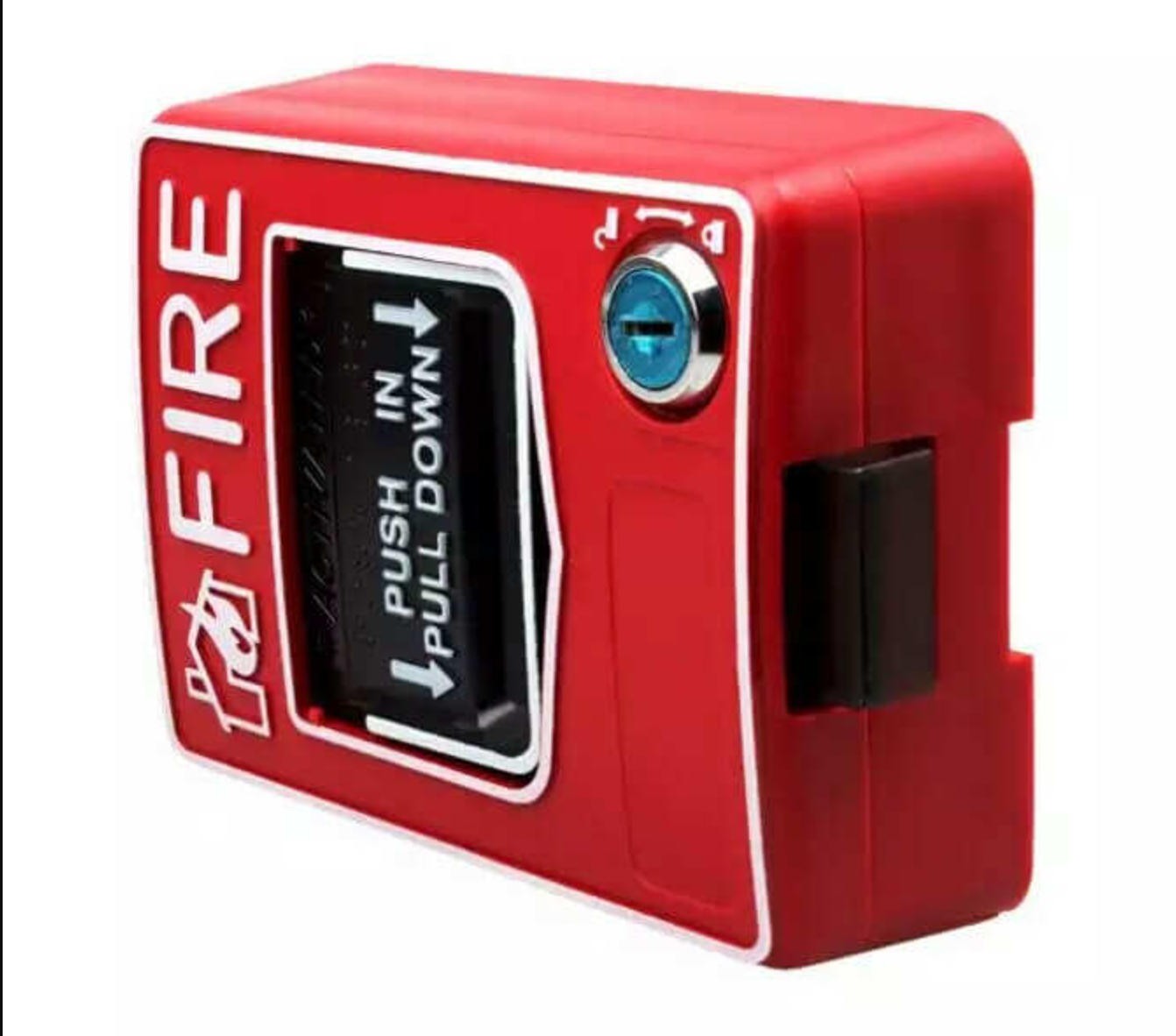

Conventional manual push station

Descriptions

Conventional manual call point is designed to be use with an intelligent two-wire control system. If it is pressed after a fire is manually confirmed, an alarm signal  sent to a fire alarm control system which will, after receiving the alarm signal, display the equipment status of the manual fire call points. When the manual fire call points is operating normally, the red indicator will blink;when there is a fire alarm, it will remain lit.

Features

Operating voltage range: 9-28VDC Volts
Alarm Current : 45mA @24VDC
Operating humidity range: 10% to 93% relative humidity, non-condensing
Operating temperature range: -10℃ to 50℃ (14F to 122F)
Dimensions: 140x104x45mm(LxWxH)
Net Weight: 220g
