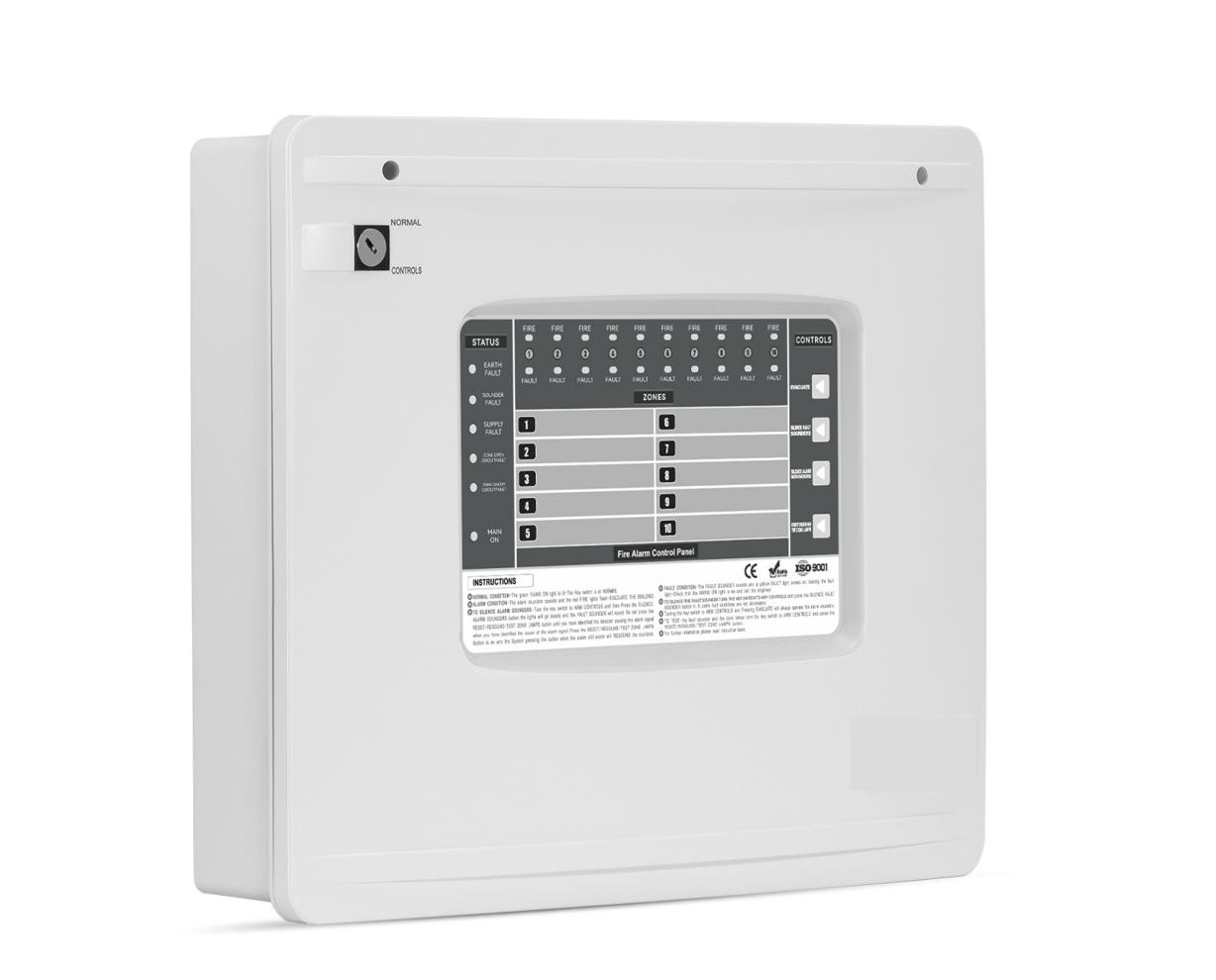

Conventional fire alarm control panel 1-10 zones

Production Descriptions

What is a Conventional Fire Alarm System?

The conventional fire alarm system is the most common fire alarm system in commercial buildings. Although nowadays, with technology developing, there are other fire alarm systems like addressable fire alarm system, wireless fire alarm system, etc. for people to choose from, in many cases, the conventional fire alarm system is still the ideal choice for most small places like small enterprises, small schools, specialty stores, restaurants, and apartments.

Conventional fire alarm system protects buildings’ safety by dividing them int

o different zones and keeping an eye on them one by one. It works with a series of detecting devices and alarm devices, giving warning alarm to alert the nearby residents or rescuers.

Features

• 1-10 zones fire alarm control panel
• Up to 35 conventional smoke and/or heat detectors per zone
• AUX DC24V outputs
• Test and silence function
• 2 sounder circuits
• High power relay output
• Fault Monitoring: Supply Fault, Battery Fault, Sounder Fault, Zone Fault (open or short circuit), Detector Removal Fault
• Indication of EARTH fault
• Fault relay output, NC/NO optional
• Alarm relay output, NC/NO optional
• Zone alarm relay output of 5 adjacent zone, NC/NO optional
• 10 zone enable/disable settings
• Enable/disable settings: GND, power supply, sounder, zone open circuit, zone short circuit, relay output
• Terminal blocks wiring connection
